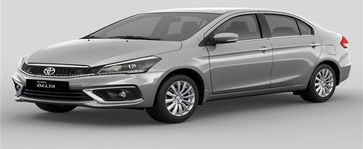

BELTA-GL
|
BELTA-GLX
|
| Major Dimensions and Vehicle Weights |
| Overall - length / width / height (mm) |
4490/1730/1475 |
4490/ 1730/ 1475 |
| Tread - Front / Rear |
1495/1505 |
1495/ 1505 |
| Wheelbase (mm) |
2650 |
2650 |
| Gross Vehicle Weight (Kg) |
1480/1490 |
1480/1490 |
| Fuel tank capacity (L) |
43 |
43 |
| Min Turning Radius - Tire/Body (M) |
5.4 |
5.4 |
| Seat Capacity |
5 |
5 |
| Number of doors |
4 |
4 |
| Kerb Weight |
1,020/1,040 1,030/1,050 |
1,020/1,040 1,030/1,050 |
| Chassis |
| Suspension Type (Front / Rear) |
MacPherson Strut with Coil Spring/Torsion Beam with Coil Spring |
MacPherson Strut with Coil Spring/Torsion Beam with Coil Spring |
| Brake Type (Front / Rear) |
Ventilated disc/Drum, leading and trailing |
Ventilated disc/Drum, leading and trailing |
| Steering Gear Type |
Rack and Pinion |
Rack and Pinion |
| Tyres |
195/55R16 |
195/55R16 |
| Engine |
| No of Cylinders |
4 |
4 |
| Valve Mechanism |
4 |
4 |
| Displacement (cc) |
1462 |
1462 |
| Fuel System |
MPI |
MP1 |
| Max Output (Kw/rpm) |
77/6000 |
77/6000 |
| Max Torque (Nm/rpm) |
138/4400 |
138/4400 |
| Engine Type |
K15B |
K15B |
| Bore (mm) |
74 |
74 |
| Stroke (mm) |
85 |
85 |
| Compression Ratio |
10.5 |
10.5 |
