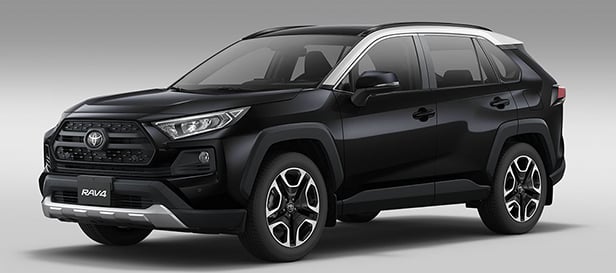

ToyotaRAV4 Adventure

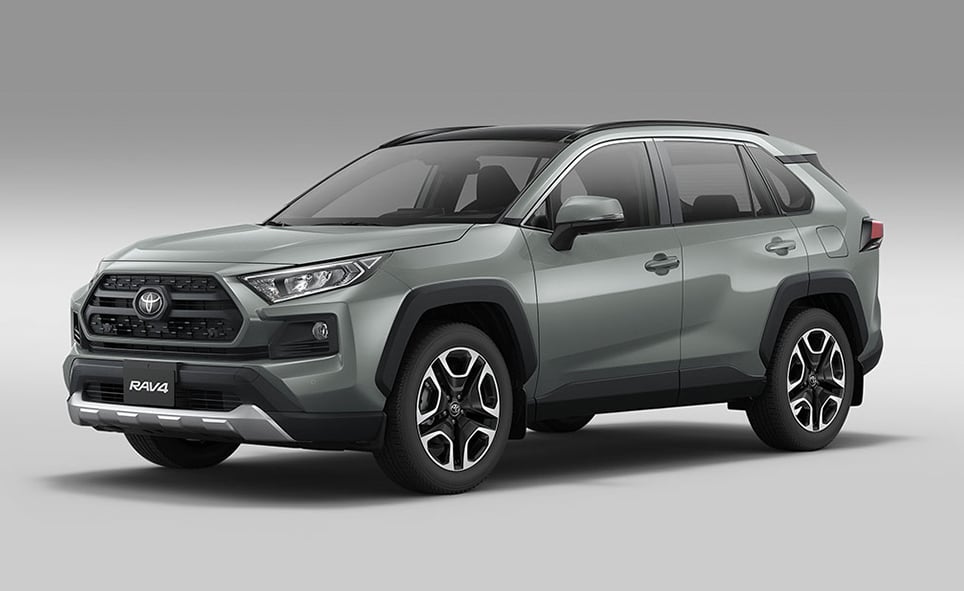

RAV4 Adventure

Whatever, whenever, wherever. RAV4 Adventure grade is ready to take you places you have dreamed of. Find your inspiration from its rugged design, impressive versatility and outstanding capability.

Inspired by Toyota’s off-road heritage, Adventure grade’s distinctive, rugged exterior features an aggressive grille, larger over fenders, unique adventure roof rails and 18-inch split five-spoke alloy wheels.

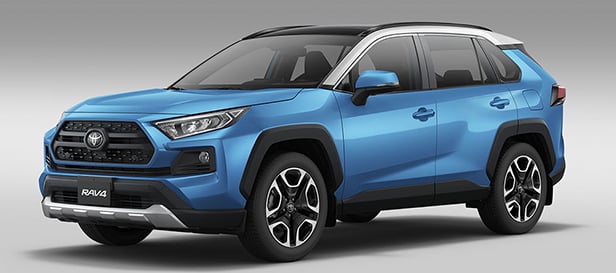

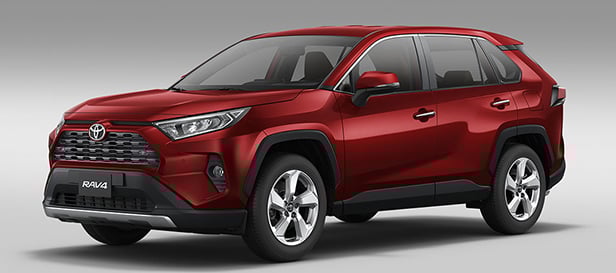

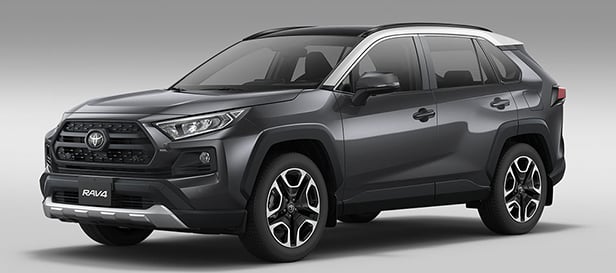

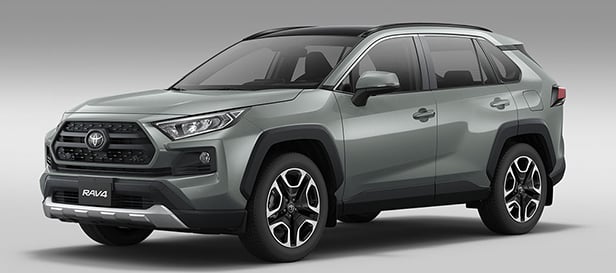

Available color options

models
Features
  • gallery

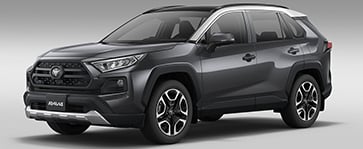

    Exterior

    • LED Projector-beam headlights
    • Front bumper integrated fog lights
    • Washer-linked intermittent windshield wiper
    • Front and Rear silver-painted bumper garnish
    • 18-inch alloy wheel tires
    • Wireless door lock
    • Keyless entry
    • Body color outside door handles
    • Power adjustable side mirrors
    • Rear windshield wiper
    • Rear window defogger
    • Roof rails
    • Roof mounted shark-fin antenna
    • Front & Rear Mud guards
  • gallery

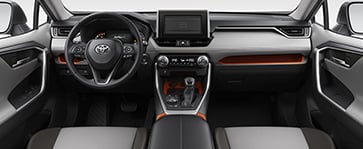

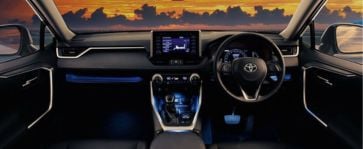

    Interior

    • Smart key system on all doors with push button start
    • Multi-Information Display
    • Dual zone automatic climate control with air filter
    • 6.1-inch touch screen display, AM/FM DVD player
    • USB/AUX/ Bluetooth connectivity
    • Audio, Multi-Information Display, Bluetooth hands-free phone controls
    • 12V x 3 accessory connector
    • Multi-Terrain Select
    • Electronic Parking brake
    • Cruise control
    • Day/Night rearview mirror
    • Auto-dimming rearview mirror
    • Leather-trimmed Sports seats
    • 8-way power adjustable drivers seat
    • Tilt/Telescopic Urethane 3 spoke steering wheel
    • Power windows with driver auto up/down with jam protection
    • Center armrest with console storage box
    • 60/40 split, reclining, fold-flat second-row seat with center armrest
    • Room, Front personal, Luggage lamp
    • Auto headlamp leveling
    • Illuminated Entry system
Specifications
Major Dimensions and Vehicle Weights
Overall - length / width / height (mm) 4615 / 1865 / 1685
Interior - length / width / height (mm) 1890 / 1515 / 1230
Tread - Front / Rear 1610 / 1640
Wheelbase (mm) 2690
Min Ground Clearance (mm) 220
Fuel tank capacity (L) 55
Seat Capacity 5
Overhang- Front / Rear (mm) 925 / 1000
Angle of Departure 20
Chassis
Suspension Type (Front / Rear) MACPHERSON STRUT / DOUBLE WISHBONE
Transmission CVT-8 speed
Brake Type (Front / Rear) VENTILATED DISC BRAKE WITH FLOATING CALIPER 2-CYLINDER / VENTILATED DISC BRAKE WITH FLOATING CALIPER 1-CYLINDER
Steering Gear Type RACK
Tyres 225/60R18 100H
Stabilizer bar (Front / Rear) TORSION BAR / TORSION BAR
Parking brake type ELECTRIC (EPB)
Power Steering Type ELECTRIC
Tire size 225/60R18 100H
Spare Tire GROUND TIRE
Wheels Sizes 18X7J
Engine
No of Cylinders 4 cylinders
Displacement (cc) 1987
Fuel System FUEL INJECTION
Fuel Type GASOLINE
Engine Model Code M20A-FKS
Cylinder Arrangement IN LINE
Bore (mm) 80.50
Stroke (mm) 97.62
Compression Ratio 13.000
Ignition System TRANSISTORIZED
SAFETY SYSTEMS
  • Dynamic Torque Vectoring AWD mechanism to control rear torque independently on Left and right wheels in response to driving conditions. The system demonstrates its influence by cornering.
  • By offering a choice of three drive modes MUD&SAND / NORMAL / ROCK&DIRT via the dial-type switch, this system lets you obtain optimum traction on varying surfaces, helping drivers enjoy secure, sure-footed control.
  • Delivers a direct shift feel in a range of driving scenarios. The transmission yields smooth and linear gear changes, as well as supreme quietness and top-class fuel economy performance.
  • The 2.0-Liter engine achieves a thermal efficiency of 40% and balances fuel efficiency with throttle response.
