ToyotaAce

Ace

No matter your transport needs, the Toyota Hiace range offers the solution. Whether load-lugging, Panel Van or Executive Minibus, the same hard-working combination of functionality, flexibility and comfort are on offer from the available range of the Hiace.

Available color options

models
  • gallery

    ACE (14 SEATER DELUXE COMMUTER)

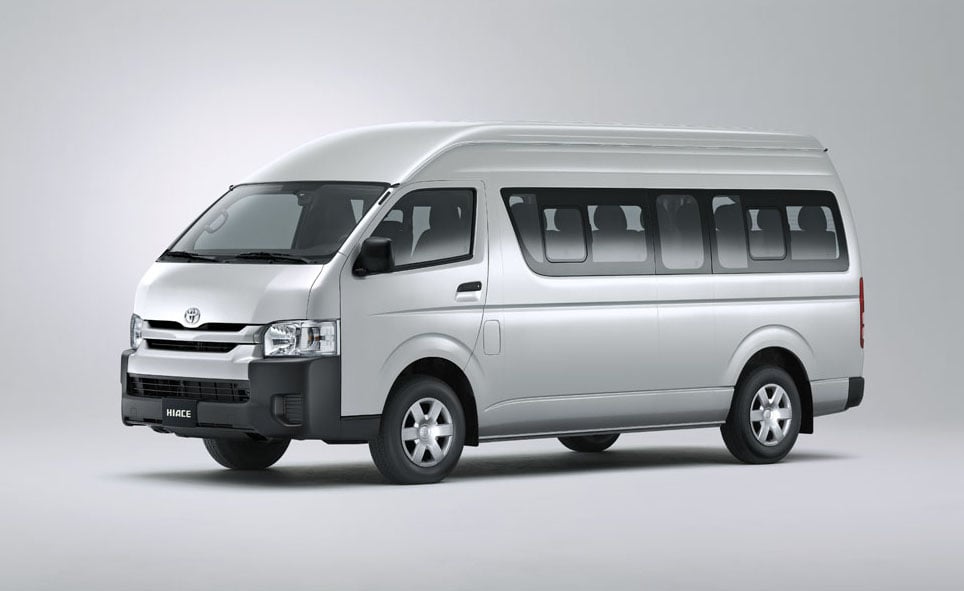

    • 15 Seater High Roof
  • gallery

    HIACE (15 SEATER COMMUTER)

    • 15 Seater Standard
  • gallery

    HIACE (3 SEATER VAN)

    • 3 Seater Panel Van

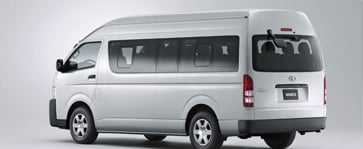

Features
  • gallery

    EXTERIOR

    • FRONT AND REAR FOG LAMPS
    • GREEN LAMINATED WINDSHIELD
    • REAR WINDOW DEFOGGER
    • HALOGEN HEADLAMPS
    • SLIDING REAR PASSENGER SIDE DOOR
    • SPARE WHEEL UNDER BODY
    • REAR WINDOW DEFOGGER
    • ENGINE UNDER COVER
    • SHORT POLE ANTENNA
    • HIGH MOUNT STOP LAMP (LED)
    • HIGH MOUNT STOP LAMP
    • FRONT TOWING HOOK
    • DAYTIME RUNNING LAMP
    • REAR QUATER LEFT GLASS
    • BUMPER: FRONT AND REAR
    • EXTERIOR REAR VIEW MIRRORS
    • ELECTRIC RETRACTABLE REAR VIEW MIRROR
    • SIDE TURN SIGNAL INTEGRATED INTO OUTSIDE MIRROR
    • FRONT AND REAR AIR SPATS
  • gallery

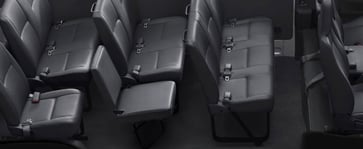

    INTERIOR

    • REAR HEAD REST (SEPERATED)
    • FABRIC SEAT COVER
    • SEAT ASSIST GRIP
    • CLOCK WITH METER
    • GLOVE BOX WITH LOCK
    • COOLER
    • POWER WINDOW(D+P AUTO UP AND DOWN)
    • FUEL LEVEL WARNING LIGHTS
    • MAUAL STEERING COLUMN: TILT AND TELESCO
    • AM/FM CD, BLUETOOTH, AUX AND USB WITH (4 SPEAKERS)
    • A/C (FRONT AND REAR WITH COOLERS)
    • CUP HOLDER: 2 FRONT, 2 REAR
    • HAND LEVER TYPE HAND BREAK
    • LIGHT CONTROL SYSTEM
    • ANALOG SPEEDOMETER KM/H
    • 4-SPOKE URETHANE STEERING WHEEL
    • METER ILLUMINATION CONTROL
    • BRAKE FLUID LEVEL WARNINGLIGHT
    • WINDSHIELD WIPER CONTROL (INTERMITTENT +MIST)
    • SUN VISOR (D+P)
  • gallery

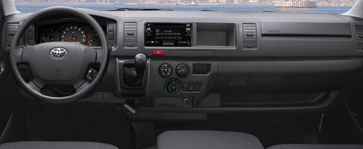

    SAFETY AND SECURITY

    • EXHAUST EMISSION CONTROL
    • ANTI-THEFT SYSTEM
    • DIFFERENTIAL LOCK
    • ABS
    • D+P AIRBAG
    • VSC WITH BRAKE ASSIST
    • HILL STARTING ASSIST SYSTEM
    • SEVERE USAGE PACKAGE
    • WIRELESS/SMART DOOR LOCK
    • WIRELESS/SMART DOOR LOCK
    • IMMOBILISER WITH SECURITY HORN
    • SMART ENTRY SYSTEM
Specifications
ACE (14 SEATER DELUXE COMMUTER)
HIACE (15 SEATER COMMUTER)
HIACE (3 SEATER VAN)
Major Dimensions and Vehicle Weights
Overall - length / width / height (mm) 5915 / 1950 / 2280 4695 / 1695 / 1980 4695 / 1695 / 1980
Interior - length / width / height (mm) 3795 / 1765 / 1550 4210 / 1545 / 1335 2930 / 1545 / 1335
Wheelbase (mm) 3860 2570 2570
Min Ground Clearance (mm) 187.5 185 195
Curb Weight (Total Min. Options (kg) / Total Max. Options (kg)) 2025-2140 1800-1885 1715-1790
Gross Vehicle Weight (Kg) 3300 1480/1490 2800
Fuel tank capacity (L) 70 70 70
Min Turning Radius - Tire/Body (M) 6.2 / 6.9 5 / 5.7 5 / 5.7
Seat Capacity 14
Overhang- Front / Rear (mm) 950 / 1105 1050 / 1075 1050 / 1075
Number of doors 4 4 4
Angle of Departure 20.2
Angle of Approach 17.6
Kerb Weight 1,020/1,040 1,030/1,050
Chassis
Suspension Type (Front / Rear) Macpherson(Coil) / Leaf Spring Double Wishbone / Leaf- spring, Rigid Double Wishbone / Leaf- spring, Rigid
Transmission 6 Speed MT 5 Speed MT 5 Speed MT
Brake Type (Front / Rear) 16in Disc / 16in Disc Ventilated Disc / Leading-Trailing Drum Ventilated Disc / Leading-Trailing Drum
Steering Gear Type Rack Rack and Pinion Rack and Pinion
Parking brake type Hand Lever Type Hand Operated-Stick type Hand Operated-Stick type
Tire size 235/65R16C 195R15C 195R15C
Engine
No of Cylinders 4 cylinders, Inline 4 cylinders 4 cylinders
Valve Mechanism 16 valve DOHC 8 valve OHC 8 valve OHC
Displacement (cc) 2755 2986 2986
Fuel System Common-rail Distributor type Distributor type
Max Output (Kw/rpm) 115/3600 68/4000 68/4000
Max Torque (Nm/rpm) 420/1600-2200 197/2400 197/2400
Fuel Type Diesel Diesel Diesel
Bore (mm) 92.0
Stroke (mm) 103.6
