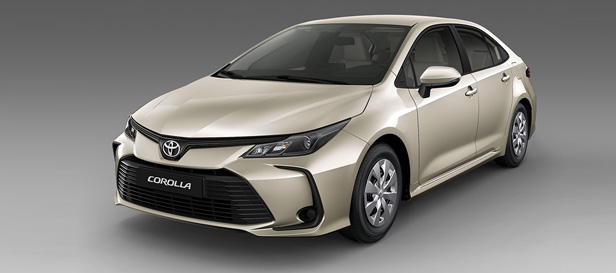

Corolla (1.6L Auto)
|
Corolla (1.8 L Auto)
|
| Major Dimensions and Vehicle Weights |
| Overall - length / width / height (mm) |
4630/1780/1435 |
4630 / 1780 / 1435 |
| Tread - Front / Rear |
1530/1539 |
1531 / 1544 |
| Wheelbase (mm) |
2700 |
2700 |
| Min Ground Clearance (mm) |
130 |
130 |
| Curb Weight (Total Min. Options (kg) / Total Max. Options (kg)) |
1325-1355 |
1340-1380 |
| Gross Vehicle Weight (Kg) |
1795 |
1820 |
| Fuel tank capacity (L) |
50 |
50 |
| Min Turning Radius - Tire/Body (M) |
5.2/5.6 |
5.4 / 5.8 |
| Chassis |
| Suspension Type (Front / Rear) |
MacPherson strut/Double Wishbone |
MacPherson strut/Double Wishbone |
| Transmission |

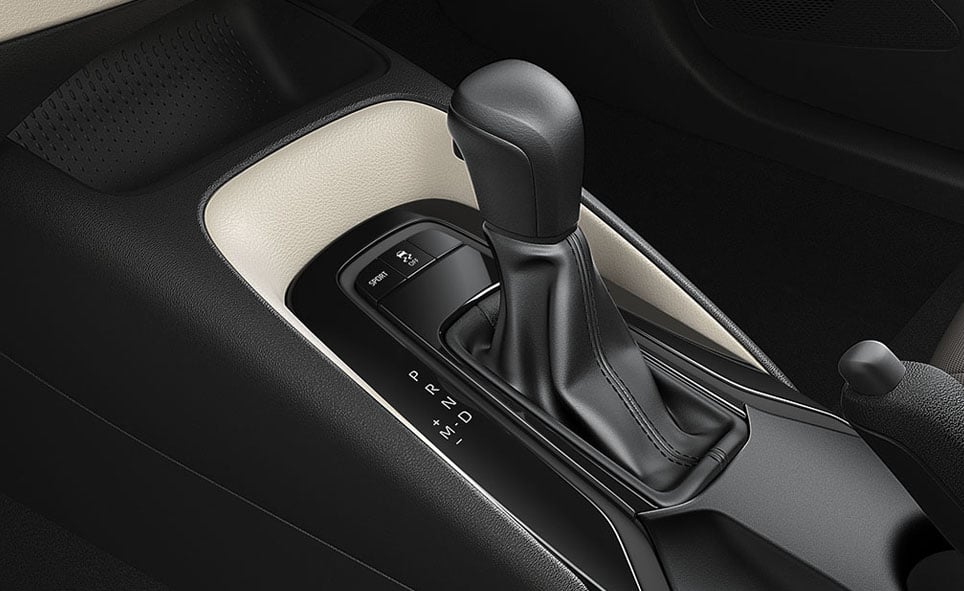

CVT with sports mode |
CVT with sports mode |
| Brake Type (Front / Rear) |
Ventilated disc/Solid disc |
Ventilated disc/ Solid disc |
| Steering Gear Type |
Rack and pinion |
Rack and pinion |
| Tyres |
205/55R16 Alloy |
225/45R17 Alloy |
| Stabilizer bar (Front / Rear) |
Front and Rear Equipped |
Front and Rear Equipped |
| Engine |
| No of Cylinders |
4 cylinders, in-line |
4 cylinders, in-line |
| Valve Mechanism |
16-valve DOHC with Dual VVT-i |
16-valve DOHC with Dual VVT-i |
| Displacement (cc) |
1598 |
1798 |
| Fuel System |
EFI |
EFI |
| Fuel Consumption (L/100Km) |
- |
|
| Max Output (Kw/rpm) |
90 / 6000 |
103 / 6400 |
| Max Torque (Nm/rpm) |
154 / 5200 |
172 / 4000 |
| Engine under cover & Protector |
Equipped |
Equipped |
